40nm Maleimide-Activated Gold Nanoparticle Conjugation Kit

SKU: MG5K-40-1

$180.00

3 vials
10 vials
Midi

CytoGroup 40nm Maleimide-Activated Gold Nanoparticle Conjugation Kit have been optimized for high efficiency one-step conjugation of thiol-containing ligands to gold nanoparticles.

The kit contains ready-to-use pre-made mixtures. No activation or manipulation of the gold nanoparticles is required prior to conjugation, which often results in poor performing conjugates. Simply mix your protein with the pre-activated maleimide gold nanoparticles supplied in the kit.

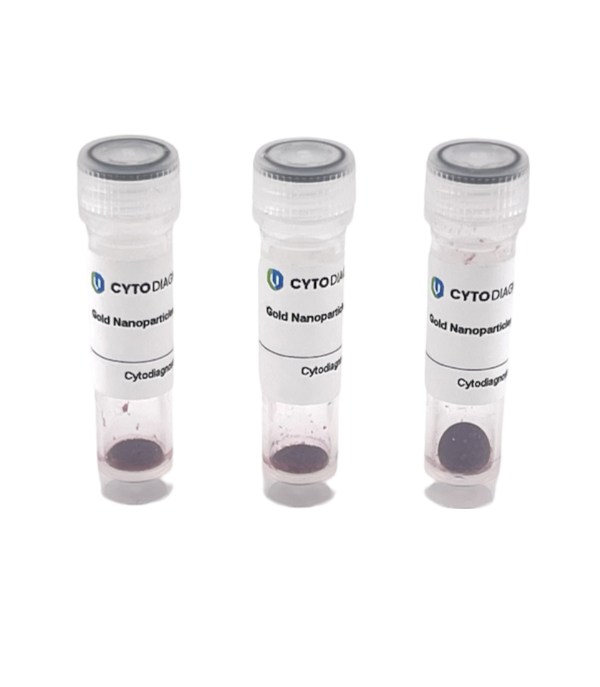

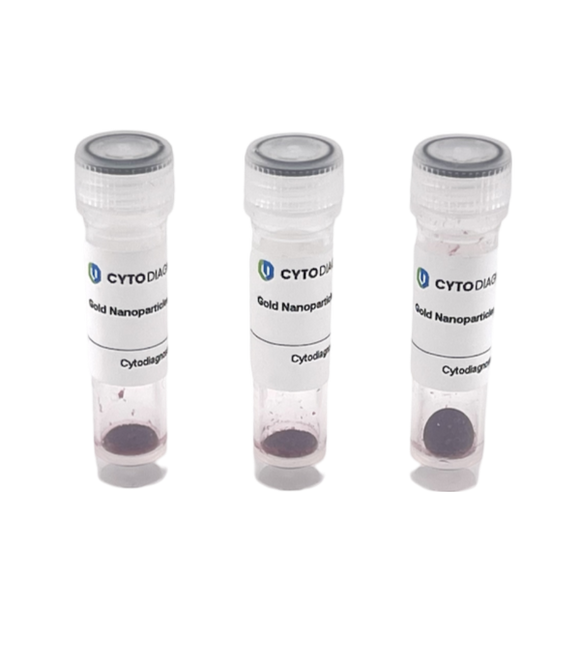

This mini kit contains individual reaction vials with lyophilized Maleimide-activated gold nanoparticles for performing three independent conjugation reactions.

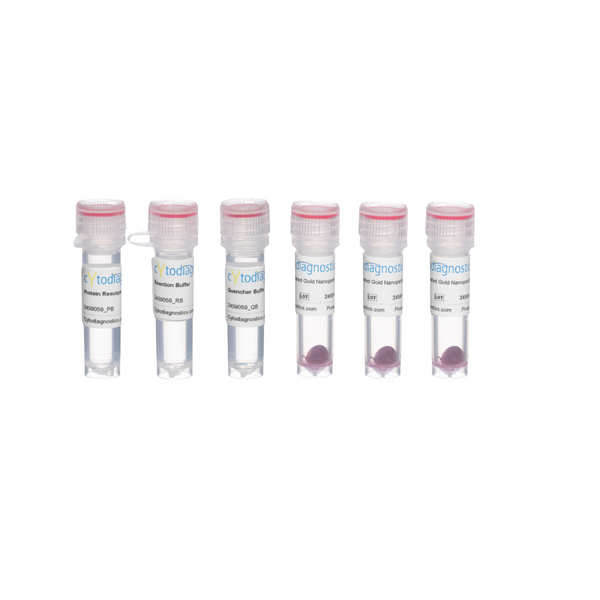

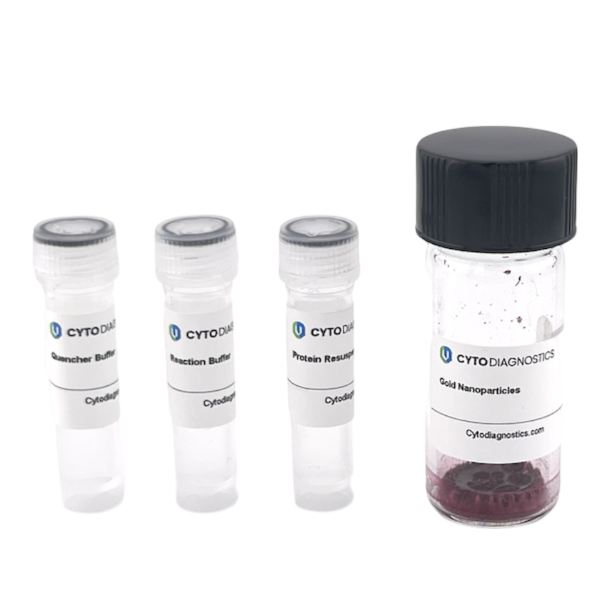

Kit Components

  • 40nm Maleimide-Activated Gold Nanoparticles (lyophilized)
  • Protein Resuspension Buffer
  • Reaction Buffer
  • Quencher Solution

Features & Benefits

  • Results in covalently bound ligand and more stable conjugate.
  • Fast and convenient one-step conjugation reaction with no pre-activation requirements.
  • Spacer between the gold nanoparticle surface and conjugated ligand minimizes effects on the tertiary protein structure, which can lead to poor performing conjugates, a common problem seen in conjugates prepared by passive adsorption.
  • Precisely engineering surface coating that reduces non-specific protein binding in biological assays.

Gold Nanoparticle Specifications

Surface functionality: Maleimide (~0.5 maleimide groups/nm2) (10kDa PEG-spacer between gold surface and maleimide-group)

Core diameter: 40nm

Concentration: OD=20 (when dissolved to a final volume of 100ul)

Particles per ml: ~1.4E+12 (when dissolved to a final volume of 100ul)

Absorbance (lambda max): 530nm
